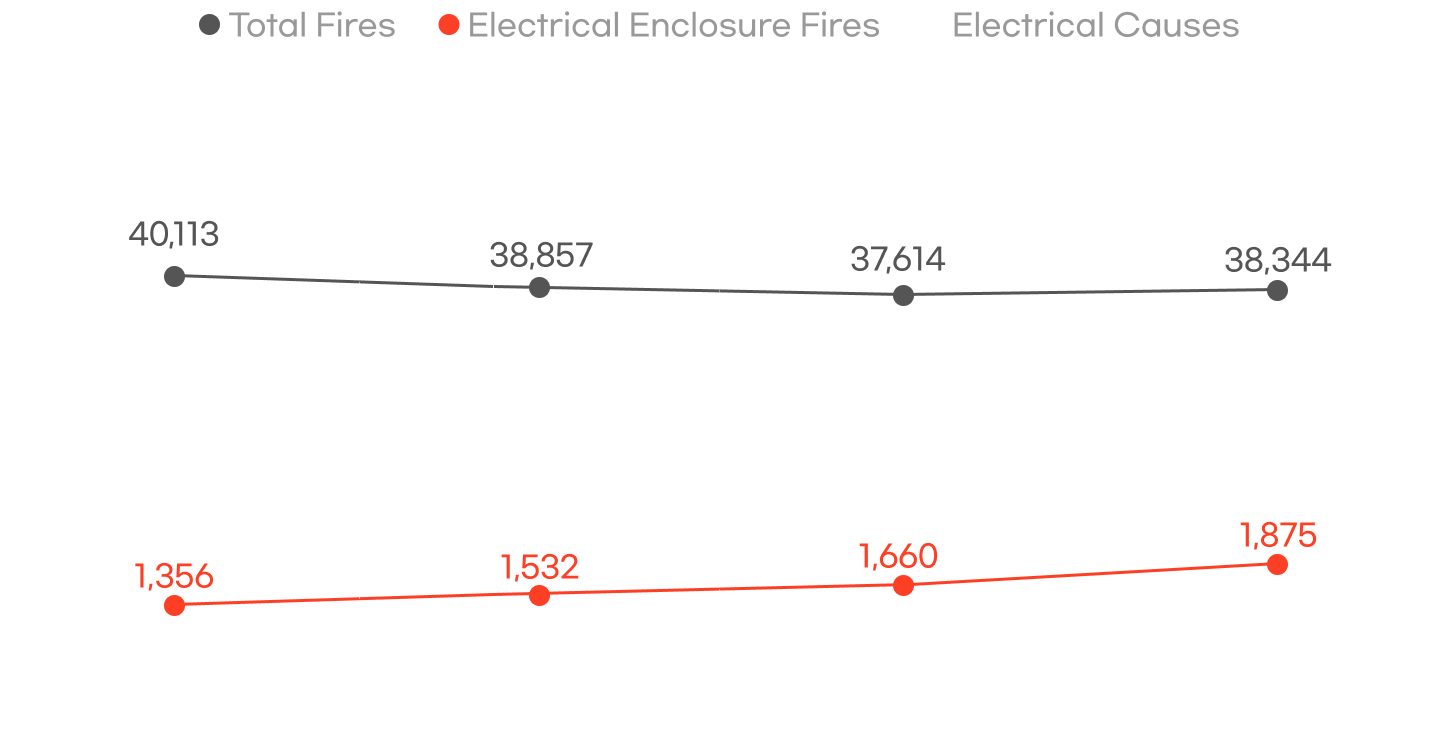

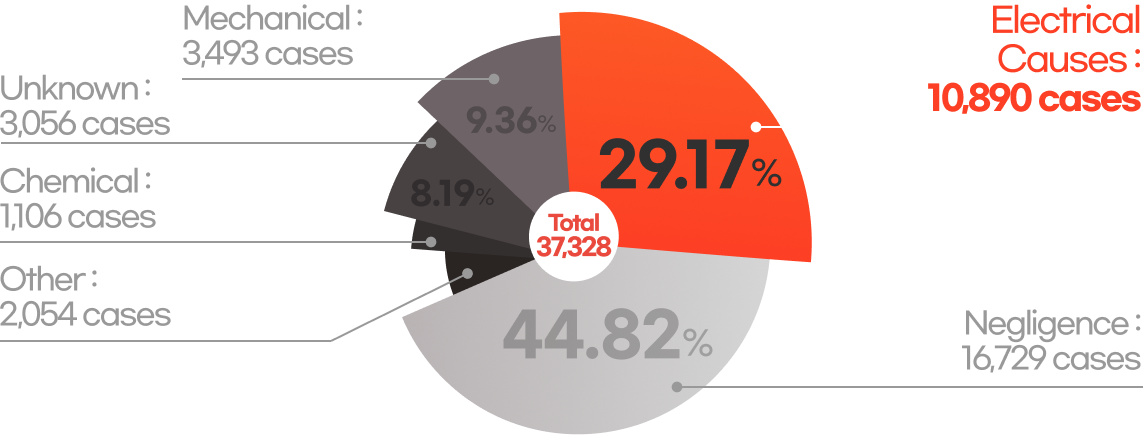

CAUSES OF FIRES IN KOREA (2025)
[Source : Korea National Fire Data Center]
Real-World Customer Test Footage (Door Open) - FL-XT
FL-XT: Rapid, automatic early-stage fire suppression.
Product Information
FL-XT Series(Compact Enclosure Fire Suppression Device)
Compact fire suppression device that automatically detects and
extinguishes fires in small, confined spaces
Extinguishing agent discharge port
Fully sealed container design
Lightweight, compact design for installation in cabinet-type switchboards and control panels.
Heat-triggered activation (glass bulb)
Halogenated Extinguishing Agent
Installation Target
- MCC control panels for continuously operating equipment (ventilation, exhaust, drainage) in underground facilities.
- Inverters and connection panels for solar installations where limited maintenance access increases fire risk.
- Switchboards, electrical and control panels, server rooms, server racks, and conveyors used on production lines.
- Switchboards and HVAC outdoor units in high-heat, fire-prone areas such as traditional markets (dense vendor stalls).
For electrical enclosures at risk of overheating fires—DB/SB/CP/MPP, MCC, UPS, Telecom Cab., Battery Cab., INV/CONV, ESS Cab.—and HVAC ODU. Ideal for enclosed/semi-enclosed spaces to contain fire spread.
Features
-
Semi-permanent Service Life
-
US PATENT
-
Made in Korea Precision hand-finished
-
Temp. detection for all models
-
KC Mark KFI Type Approval
-
K-Mark certified
-
Rapid response in 1–3 seconds
-
Automatic discharge
-
Simple installation
-
Multi Option (monitoring system)
Proven performance and
track record over 6 years since launch.
Spec.Small
Installation Method : Flexible top mounting
KTL Certification : PB12021-016
 |
 |
 |
 |
|---|---|---|---|
| Classification | FL-XT 40 | FL-XT 120 | FL-XT 360 |
| Equipment Categories | Fire Extinguishing Equipment for Small Spaces | ||
| Fire Test Model | 300 x 200 x 700 | 400 x 300 x 1000 | 600 x 500 x 1200 |
| KFI Design Protected Volume(㎥) | 0.03 | 0.08 | 0.25 |
| K-Mark Protected Volume(㎥) | 0.04 | 0.12 | 0.36 |
| Fire Detection | Glass Bulb | ||
| Activation temperature | 68℃ | ||
| Ambient Activation temperature | -20~50℃ | ||
| Service Life | Semi-permanent | ||
Spec.Medium
Installation Method : Vertically on the top side
 |
 |
 |
 |
|---|---|---|---|

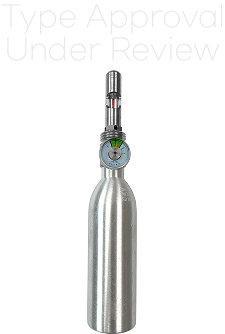

| Classification | FL-XT 360G | FL-XT 1200 | FL-XT 3000 |
| Equipment Categories | Automatic Gas Fire Extinguishing System | ||
| Fire Test Model | 600 x 600 x 1,000 | 900 x 900 x 1,500 | 1,200 x 1,200 x 2,000 |
| KFI Design Protected Volume(㎥) | 0.36 | 1.215 | 2.88 |
| Fire Detection | Glass Bulb | ||
| Activation temperature | 68℃ | ||
| Ambient Activation temperature | -20~50℃ | ||
| Service Life | Semi-permanent | ||
Spec.Large
Installation Method : Vertically on the top side
|
 |
 |
|---|---|---|
| Classification | FL-XT 6000 | FL-XT 10000 |
| Equipment Categories | Automatic Gas Fire Extinguishing System | |
| Fire Test Model | 1,500 x 1,500 x 2,500 | 1,800 x 1,800 x 3,000 |
| KFI Design Protected Volume(㎥) | 5.625 | 9.72 |
| Fire Detection | Glass Bulb | |
| Activation temperature | 68℃ | |
| Ambient Activation temperature | -20~50℃ | |
| Service Life | Semi-permanent | |
Examples of Protected Volume
| Small Cm | Medium Cm | Large Cm | ||||
|---|---|---|---|---|---|---|
 |
 |
 |
 |
 |
 |
 |
| FL-XT 40 | FL-XT 120 | FL-XT 360 | FL-XT 1200 | FL-XT 3000 | FL-XT 6000 | FL-XT 10000 |
| Protected Volume 0.04m³ |
Protected Volume 0.12m³ |
Protected Volume 0.36m³ |
Protected Volume 1.215m³ |
Protected Volume 2.880m³ |
Protected Volume 5.625m³ |
Protected Volume 9.72m³ |

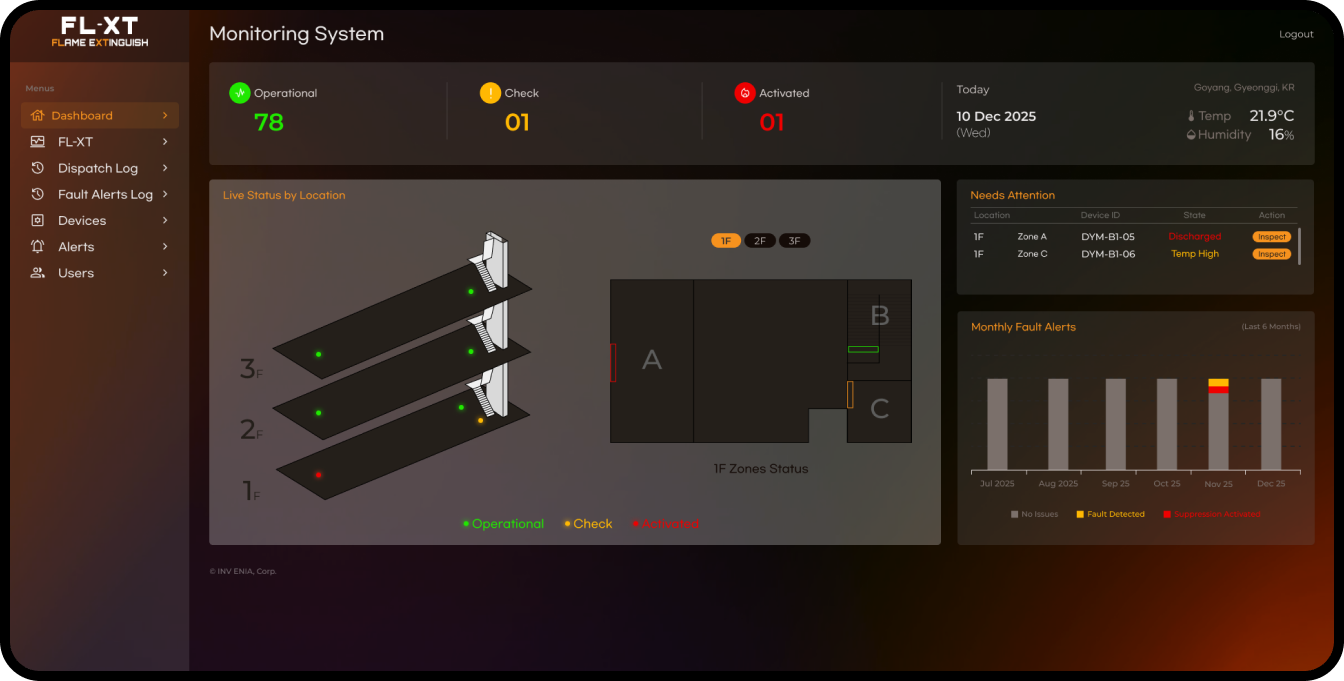

Monitoring system for FL-XT
The FL-XT automatic fire suppression system provides real-time monitoring of fire events and system anomalies. If an irregularity is detected, it immediately sends alerts through the dashboard and notification channels (SMS, email, WhatsApp, Messenger).
-
Fire/abnormality Alerts
Messenger/email/etc.
-
Dashboard
Real-time monitoring
-
Alerts / Trans logs
Anomaly logs
-
Custom Map
Location display
(optional) -
Integration with
ERP and groupware systems -
API provided
Customized
service -
Equipment
management Reg., mod.,
Monitoring systemProcess
Fire occurs in a small enclosure
FL-XT activates
Monitoring system is activated
(detects & logs the event)
- Alert
generated - Alert delivered
(SMS, email) - HQ monitoring team
initiates response
Photos of Installation Process
| Before | During | After |
|---|---|---|
 |
 |
 |
 |
 |
 |
Installation Cases
Air Conditioner's Condensing Units
Fire Suppression at Dangjin Cultural Center
Certification and Patent Status
 |
||||
| U.S. Patent Certificate | ||||
 |
 |
 |
 |
|
 |
 |
 |
 |
|
 |
 |
 |
 |
|
